FPV (First Person View)¶

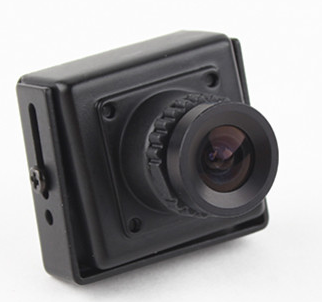

Modelo: Fatshark 700TVL High Resolution FPV Tuned CCD Camera V2 (NTSC) - Fonte: Hobbyking
Características:
- FPV tuned white balance and gain control
- 700 TVL high resolution camera
- Compact size
Especificações:
- Type: Colour
- Signal System: NTSC
- Pick Up Device: 1/3” SONY Super-HAD CCD
- Pixel: 726X 582
- Resolution: 700 TV Lines
- Min Illumination: 0.08 Lux /F1.2
- Scanning System: 2:1 Interlace
- Sync System: Internal
- S/N Ratio: More than 55dB
- Gain Control: Auto (FPV tuned)
- White Balance : Auto (FPV tuned)
- Lens: 3.6mm (no IR)
- Video output: 1.0V p-p (75Ω BNC)
- Power Supply: 3.3 – 5V DC
- Power Consumption: 110mA
- Dimensions: 27 X 25 X 13 mm (+14mm lens extrude)
- Weight : 31g
- Operating Temp: -10 to 50°C
Referências¶
- Fatshark 700TVL High Resolution FPV Tuned CCD Camera V2 (NTSC) - https://hobbyking.com/en_us/fatshark-700tvl-high-resolution-fpv-tuned-ccd-camera-v2-ntsc.html
